WR 51 Waveguide to 2.92mm K Type Adapter Ku/K Band 15GHz~22GHz End Launch Aerospace RF Connectors with Low Insertion Loss
|
Thông tin chi tiết sản phẩm:
Thanh toán:
|
Chi tiết sản phẩm
| Tên sản phẩm: | Ống dẫn sóng sang bộ chuyển đổi loại K | Người mẫu: | BTZH-H1G-3 |
|---|---|---|---|
| Dải tần số: | 15GHz ~ 22GHz | Trở kháng: | 50Ω |
| DWV: | 500V | Điện trở cách điện: | ≥5000MΩ |
| VSWR: | 1,25 | Mất chèn: | ≤0,25dB |
| Nhiệt độ: | -55oC ~125oC | ||
| Làm nổi bật: | Waveguide to 2.92mm K adapter,Ku/K Band RF connector,Aerospace waveguide with low insertion loss |
||

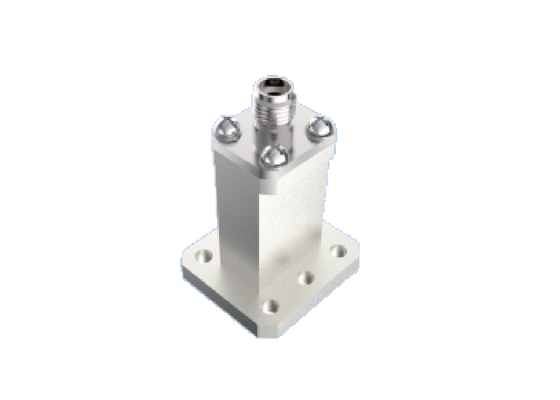

WR 51 Waveguide to 2.92mm K Type Adapter Ku/K Band 15GHz~22GHz End Launch Aerospace RF Connectors with Low Insertion Loss
Elite Electronics produces aerospace-grade waveguide to coaxial adapter, available in two structural types: End launch and right angle type. The frequency ranges from 5.3 GHz to 145 GHz. The rectangular waveguide ports include: BJ70(WR137), BJ84(WR112), BJ100(WR90), BJ120(WR75), BJ140(WR62), BJ180(WR51), BJ220(WR42), BJ260(WR34), BJ320(WR28), BJ400(WR22), BJ500(WR19), BJ620(WR15), BJ740(WR12), BJ900(WR10), BJ 1200(WR8)
The coaxial interface cover SMA, 2.92 mm, 2.4 mm and 1.85 mm, 1.0mm, 0.8mm series. Each waveguide port supports the full waveguide bandwidth. Featuring reliable structure, compact outline dimensions, excellent electrical performance with good consistency, and light weight (≤20 g), these products are widely used in various types of spacecraft.
Waveguide to Coaxial Adapter Design Features
- Compact design
- Frequency band operation up to 145GHz
- Rugged construction for reliability
- Available in multiple configurations: end launch, right angle options
- Low VSWR & low Insertion loss
50Ω 15GHz~22GHz WR 51 / BJ180 Waveguide to 2.92mm Adapter Ku / K Band End Launch Aerospace RF Connectors with Low VSWR
Model : BTZH-H1G-3
Note: Please contact sales freely for more model details.
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each waveguide WR51 to 2.92mm adapter aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
Related Information of Waveguide Port: (for reference only)
| BJ | WR | Frequency (GHz) | Inner Width | Inner Hight | Common Freq. Band |
|---|---|---|---|---|---|
| BJ70 | WR137 | 5.38～8.17 | 34.85 | 15.80 | C/X Band |
| BJ84 | WR112 | 6.57～9.99 | 28.50 | 12.62 | X Band |
| BJ100 | WR90 | 8.20～12.50 | 22.86 | 10.16 | X Band |
| BJ120 | WR75 | 9.84～15.00 | 19.05 | 9.525 | Ku low freq. |
| BJ140 | WR62 | 11.90～18.00 | 15.80 | 7.90 | Ku Band |
| BJ180 | WR51 | 15.80～24.00 | 12.95 | 6.48 | Ku high/K low freq. |
| BJ220 | WR42 | 18.00～26.50 | 10.67 | 5.33 | K Band |
| BJ260 | WR34 | 21.70～33.00 | 8.636 | 4.318 | Ka low freq. |
| BJ320 | WR28 | 26.50～40.00 | 7.112 | 3.556 | Ka |
| BJ400 | WR22 | 33.00～50.00 | 5.690 | 2.845 | Ka High freq. / U |
| BJ500 | WR19 | 39.20～59.60 | 4.775 | 2.388 | U/V Band |
| BJ620 | WR15 | 50.00～75.00 | 3.759 | 1.880 | V Band |
| BJ740 | WR12 | 60.50～91.90 | 3.099 | 1.549 | E Band |
| BJ900 | WR10 | 75.00～110.0 | 2.540 | 1.270 | W Band |
| BJ1200 | WR08 | 92.20～140.0 | 2.032 | 1.016 | F Band |
