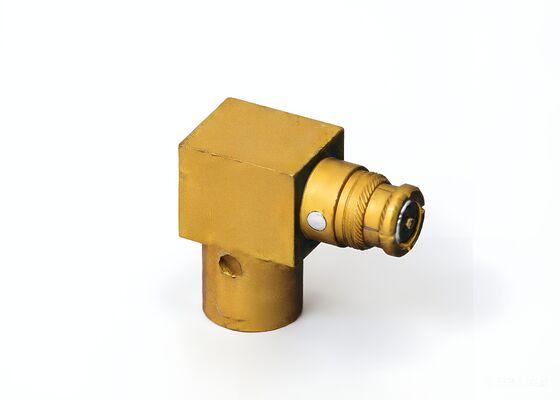

SMP Right Angle Female Jack 50 ohm18 GHz 40GHz for Cable CXN3507
|
Thông tin chi tiết sản phẩm:
Thanh toán:
|
Chi tiết sản phẩm
| Tên sản phẩm: | Đầu nối nữ góc phải SMP | Giới tính: | Nữ giới |
|---|---|---|---|
| Người mẫu: | SMP-KW507-2 | Dải tần số: | 0,3 MHz-18GHz |
| Nhà ở: | Hợp kim đồng, mạ vàng | Danh bạ: | Hợp kim đồng, mạ vàng |
| Chất cách điện: | PTFE | Điện trở cách điện: | > 5000MΩ |
| DWV: | 500V | sự phụ thuộc: | 50 Ohm |
| Nhiệt độ: | -55oC～+125oC | Loại cáp: | CXN3507 |
| trong kho: | > 200 chiếc | ||
| Làm nổi bật: | SMP right angle female jack 50 ohm,SMP RF connector 18 GHz 40GHz,SMP cable connector with warranty |
||
Product Description:
SMP connectors are miniature push-on RF coaxial connectors designed for high-frequency applications up to 40 GHz. Their compact design enables high-density board-to-board interconnections, making them widely used in communications, radar, and electronic equipment. The male plug is available in three configurations—full detent, limited detent, and smooth bore—optimized respectively for high retention force, frequent mating cycles, and blind-mating applications, thus meeting diverse requirements for PCB and cable assemblies.
|
Electrical Characteristics
|
||
|
Impedance
|
50Ω
|
|
|
Frequency Range
|
DC~40GHz
|
|
|
Rated Voltage
|
170VRMS
|
|
|
Dielectrics Voltage-resistance
|
500VRMS
|
|
|
Insulation Resistance
|
≥5000MΩ
|
|
|
|
Outer conductor
|
Normal≤2.5mΩ
|
|
Center conductor
|
Normal≤6mΩ
|
|
|
VSWR
|
≤1.3
|
|
| VSWR | DC~18GHz | 18GHz~26.5GHz | 26.5~40GHz | |
| Straight | ≤1.25 | ≤1.3 | ≤1.4 | |
| Right Angle | ≤1.3 | |||
| Adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| Others | ≤1.3 |
The outline demension of SMP Jack Mating Cable CXN3506, Model: SMP-KW507-2 Up to 18GHz 40GHz
SMP Cable Assemblies for your reference:
Cable Model:CXN 3507
Cable OD: 3.6mm
Cable Color : Grey
Frequency:up to 18GHz, 40GHz
We also have straight, flange SMP Cable Connectors, SMP Model:SMP-K507 Up to 18GHz, 40GHz
Cable Model: CXN 3507
Cable OD: 3.6mm
Cable Color: Grey
More products and detaied specification, please contact us freely.
Applications:
Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.
Customization:
Product Customization Services for Different Length SMP Connectors are available:
Brand Name: ELT
MOQ: 200 pcs
Price: Depending on the quantity
Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.
We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA, TMA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler.
Packing and Shipping:
Packaging for SMP Straight Connectors:
1 Piece/ small plastic bag
10 Pieces/ larger plastic bag
100 Pieces/ carton box
The SMP Straight Connectors comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.
For shipping, the SMP Connectors is placed in caron. We will supply the tracking No after shipping.
