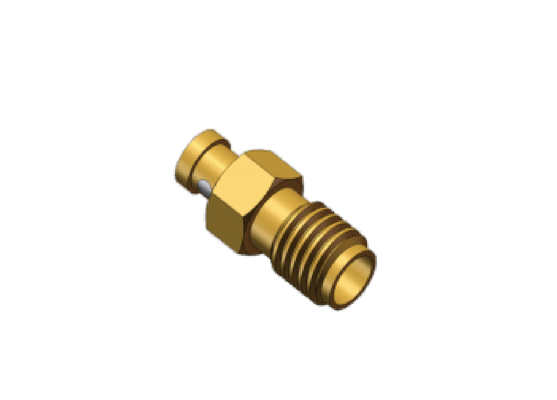

18GHz 50Ω Female Mini SMA Jack SSMA RF Coaxial Connector Mating Cable MF108A, CXN3506
|
Thông tin chi tiết sản phẩm:
Thanh toán:
|
Chi tiết sản phẩm
| Tên sản phẩm: | Đầu nối cáp nữ SSMA | Người mẫu: | SSMA-K506 |
|---|---|---|---|
| Dải tần số: | 0,3 MHz-18GHz | Trở kháng: | 50Ω |
| DWV: | 750V | Điện trở cách điện: | ≥5000MΩ |
| Dây dẫn trung tâm: | Hợp kim đồng, mạ vàng | Dây dẫn bên ngoài: | Hợp kim đồng, mạ vàng |
| Phong cách kết nối: | Thẳng | Cáp giao phối: | CNX3506, MF108A |
| Chất cách điện: | PTFE | Mẫu: | trong kho |
| Làm nổi bật: | 18GHz SSMA RF coaxial connector,50Ω female mini SMA jack,SSMA RF connector mating cable |
||
50Ω 18GHz Female SSMA RF Coaxial Connector Mating for Cable CXN3506, MF108A (Cable OD 2.3mm)
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Feature:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Mini SMA Jack RF Coaxial Cable Connector Dimenstion:
Model No.: SSMA-K506 ( mating cable CXN3506, MF108A, Cable OD 2.3mm)
Model No.:SSMA-K506L ( mating cable CXN3506, MF108A, Cable OD 2.3mm )
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
