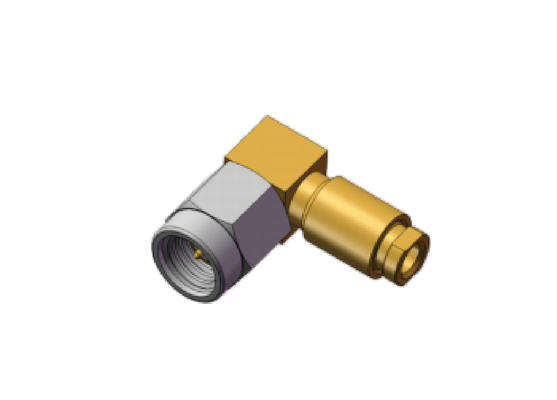

50Ω 18GHz Mini SMA Male Right Angle SSMA RF Coaxial Connector with Gold Plated Conductors
|
Thông tin chi tiết sản phẩm:
Thanh toán:
|
Chi tiết sản phẩm
| Tên sản phẩm: | Đầu nối cáp nam SSMA | Người mẫu: | SSMA-JW506 |
|---|---|---|---|
| Dải tần số: | 0,3 MHz-18GHz | Trở kháng: | 50Ω |
| DWV: | 750V | Điện trở cách điện: | ≥5000MΩ |
| Dây dẫn trung tâm: | Hợp kim đồng, mạ vàng | Dây dẫn bên ngoài: | Hợp kim đồng, mạ vàng |
| Phong cách kết nối: | Góc phải | Cáp giao phối: | CNX3506, MF108A |
| Chất cách điện: | PTFE | Mẫu: | trong kho |
50Ω 18GHz Mini SMA SSMA RF Coaxial Connector Mating for Cable CXN3506,MF108A (Cable OD 2.3mm)
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Feature:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Mini SMA Plug Right Angle RF Coaxial Cable Connector Dimenstion:
Model No.: SSMA-JW506 ( mating cable CXN3506, MF108A, Cable OD 2.3mm)
Model No.:SSMA-JW506G-1 ( mating cable CXN3506, MF108A, Cable OD 2.3mm )
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
Other Products Catalogs
| SMA SSMA Connectors |
| SMP SMPM CSMP ASMP Connectors |
| mmW Connectors Catalog (2.92mm, 2.4mm, 1.85mm, 1.0mm, 0.8mm) |
| Between Series RF Adapter ( SMA to SSMA, SMP to SMPM, SMA to 2.92mm, SMA to N....) |
| N TNC TNCA Connectors |
| BMA SBMA Connectors |
| MCX & MMCX Connectors |
| Micro D Connectors J30J+J30J+J55A+J55AM+J56J |
| Hermetic Glass to Metal Seals |
| RF Coaxial Cable Assembly |
| Customized Product (Antennas, Filters, Power Dividers, Coupler, Waveguide Components, Test Fixtures, Package Modules) |
For more product models information or specification, please check our catalog or contact our sales team through:
